• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1976 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 261180

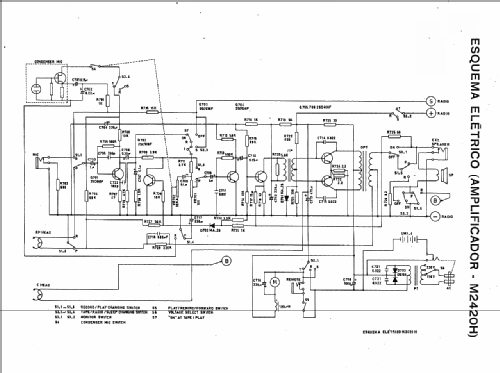

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 110; 220 / D: 4 × 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 2 W (max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: AM Radio Cassette Recorder M2420H, M2420-2H - Sanyo Electric Co. Ltd.;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 316 x 198 x 91 mm / 12.4 x 7.8 x 3.6 inch

• Notes

• Cassette with Auto Stop.

  The M2420-2H has slightly different voltage ranges.

• Net weight (2.2 lb = 1 kg)
• 2.2 kg / 4 lb 13.5 oz (4.846 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by a member from A. See "Data change" for further contributors.
