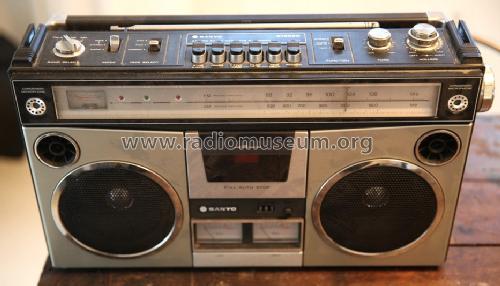

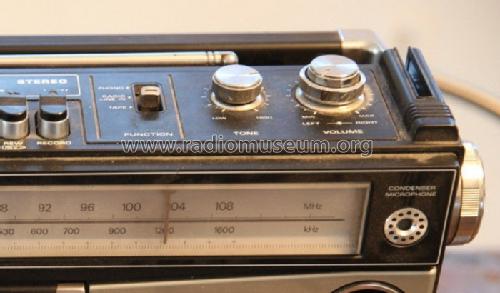

Portable Stereo AM/FM Radio Cassette Recorder M9977

Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

Data
Forum
Pictures
Collections

  • Year
  • 1978 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 243586

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 120 / 6 x 1,5 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Power out
  • 6 W (max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Portable Stereo AM/FM Radio Cassette Recorder M9977 - Sanyo Electric Co. Ltd.;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 17.5 x 10.5 x 4 inch / 445 x 267 x 102 mm
  • Notes

  • 4 Speakers, 2x 3 Watt output

    13W power Consumption

    Dual analog VU Meters, Signal strength/Battery meter.

  • Author
  • Model page created by Daniel Rosha. See "Data change" for further contributors.
