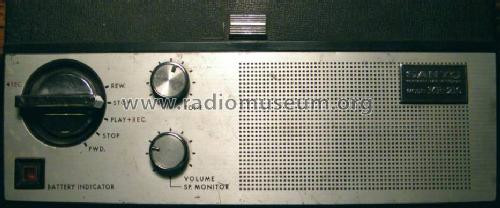

Portable Tape Recorder MR-210

• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1965 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 143293

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• 2SB346 2SB186 2SB186 2SB178 2SB178 2SB22 2SB186 2SB22

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Line / Batteries (any type) / 110-117; 220-240 / 6 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Portable Tape Recorder MR-210 - Sanyo Electric Co. Ltd.;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 280 x 90 x 220 mm / 11 x 3.5 x 8.7 inch

• Notes
• Sanyo MR-210 Transistor Portable Tape Recorder;
  Reel-reel, dual speed 1.7/8 & 3.3/4 ips, tone control.

• Source of data
• -- Collector info (Sammler)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by a member from A. See "Data change" for further contributors.
