Radio & Cassette IC-8800 RP-8800

Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

Data
Forum
Pictures
Collections

  • Year
  • 1977 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 183178

 Technical Specifications

  • Number of Transistors
  • 18
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, 2 Short Wave plus FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 120; 200; 240 / 6 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Radio & Cassette IC-8800 RP-8800 - Sanyo Electric Co. Ltd.;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes
  • Sanyo Radio & Cassette IC 8800, Type: RP-8800, Preset FM, Wireless Mic;
    Unit has a wireless microphone facility.
    Coverage:
    FM: ~88 - 108 MHz, & ~110 MHz for mic.,
    AM: ~530 - 1.600 kHz,
    SW1: ~2.3 - 7.0 MHz,
    SW2: ~7.0 - 22.0 MHz,
    treble & bass & squelch control, mic. tune & 2 x FM preset, AFC, fine tuning, tuning/batt. meter, dial light, accu charger for wireless mic, 2 IC`s, Auto-Stop System, earphone/ext. speaker jack,

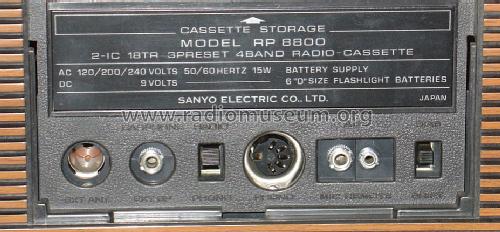

    terminals: DIN AF I/O with phono-in, mic. & rem. in, ext. antenna, 15 W power consumption, made in Japan.
  • Author
  • Model page created by Philip Obetsanov. See "Data change" for further contributors.
