• Country
• Spain

• Manufacturer / Brand
• Sanyo España, Sonitrón, Eurotrón, Ainsa; Huesca (HU) y Tudela (NA)

• Year
• 1978

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 341010

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• BF198 BF494 BF494 BF494 BC548 BC548 AC187 AC188 LA1201 TA7137 LA4100 LA4100 AA119 BA217 BB100 F12

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 127; 220 / C: 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9.2 cm = 3.6 inch

• Power out
• 2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Radio Cassette M2528 N - Sanyo España, Sonitrón, Eurotr

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 220 x 285 x 90 mm / 8.7 x 11.2 x 3.5 inch

• Notes

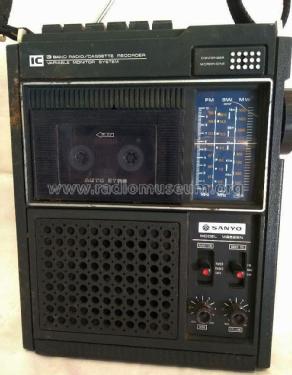

• Sanyo España, Radio Cassette Recorder M-2528-N

  Frequency Range:

  FM 88 - 108 MHz
  SW 3,2 - 12 MHz
  MW 525 - 1605 kHz

  Sleeptimer

  See also the Japanese model M2528 LU with FM, MW and LW bands.

• Mentioned in
• Anuncio revista Triunfo año 1978

• Literature/Schematics (1)

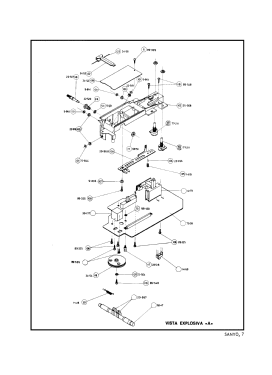

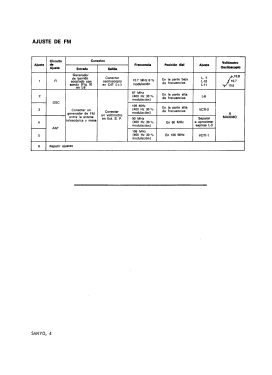

• -- Schematic (Esquemario Magnetófonos y Cassettes REDE, Tomo VI, 1978)

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
