• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1979–1981

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 249973

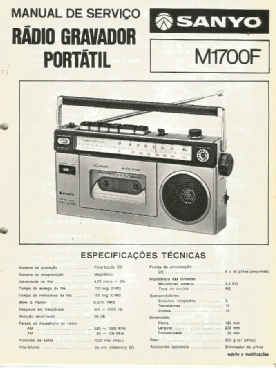

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage

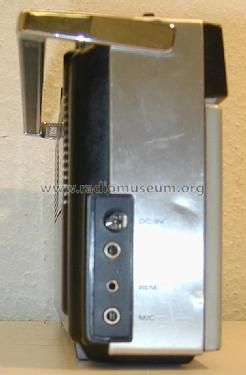

• Batteries / addl. power jack / UM-3: 6 x 1,5 / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.6 cm = 2.6 inch

• Power out
• 1.2 W (max.)

• Material
• Various materials

• from Radiomuseum.org
• Model: Radio Cassette Recorder M1700F - Sanyo Electric Co. Ltd.;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 235 x 125 x 56 mm / 9.3 x 4.9 x 2.2 inch

• Notes

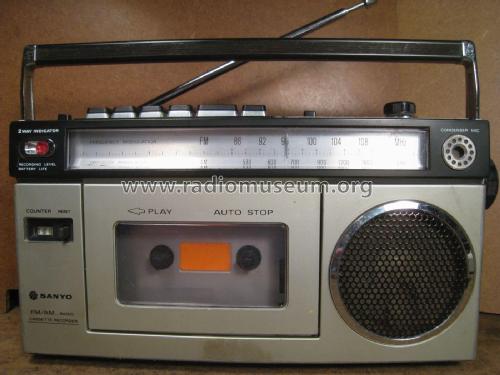

• Sanyo M1700F AM/FM portable radio-cassette-recorder with counter, Auto-Stop, Sleep, Pause, condenser mic, 2-way led-indicator

  Ranges: FM 88 - 108 MHz / AM 525 - 1605 kHz

  See also Sanyo M1700FZ with different receiving ranges.

• Net weight (2.2 lb = 1 kg)
• 0.950 kg / 2 lb 1.5 oz (2.093 lb)

• Price in first year of sale
• 94.00 AUS $

• Mentioned in
• Mingay's Price Service (Aug 1979 to Feb 1981.)

• Author
• Model page created by Joan Monyarch-Callizo. See "Data change" for further contributors.
