• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1970–1972

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 325306

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 15

• Semiconductors
• 2SC668 2SC668 2SC772 2SC772 2SC772 2SC929 2SC693 2SB186 2SB186 2SB186 2SB186 2SB186 1S188 1S426 1S553

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 120; 200; 240/ C: 6 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Radio/Cassette Recorder M-458F - Sanyo Electric Co. Ltd.;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 11 x 3.125 x 6.625 inch / 279 x 79 x 168 mm

• Notes

• Sanyo Model M-458

  Portable cassette recorder with built-in MW/SW/FM radio. AC/battery operated. Easy cassette ejection; AUX input; direct radio-to-tape recording facility. Complete with microphone. Wood panelled cabinet. (MINGAY'S PRICE SERVICE)

• Net weight (2.2 lb = 1 kg)
• 7 lb 0 oz (7 lb) / 3.178 kg

• Price in first year of sale
• 195.00 AUS $

• Mentioned in
• Mingay's Price Service (Aug 1970 to Feb 1972.)

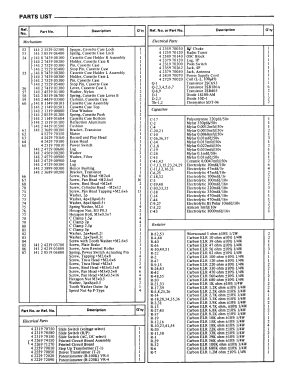

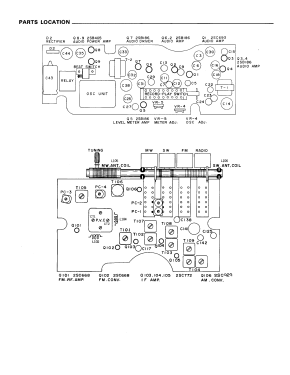

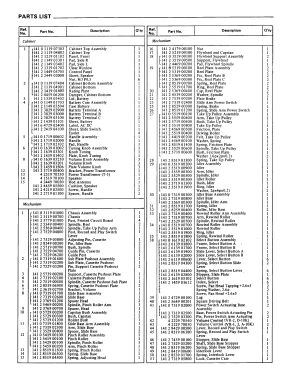

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Martin Kent. See "Data change" for further contributors.
