Portable Radio Cassette Recorder with Mike Mixing M-2412F

Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

  • Year
  • 1974 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 261175

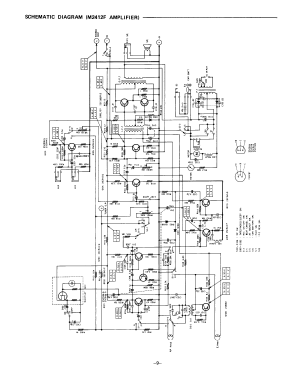

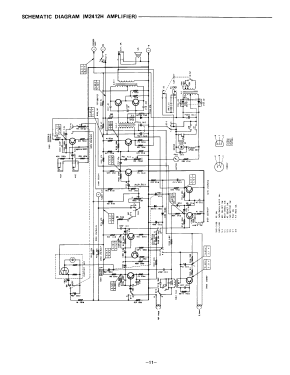

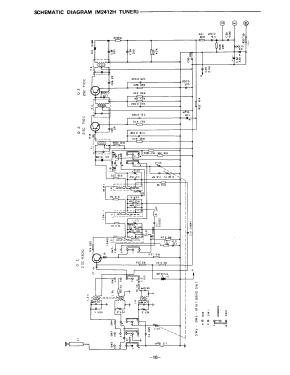

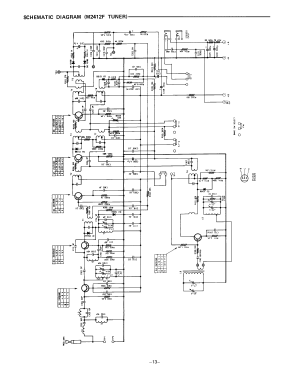

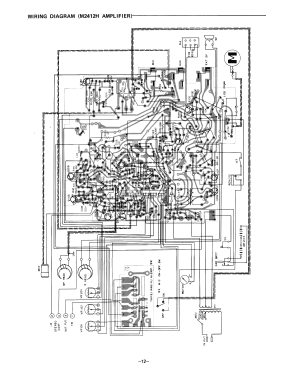

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 17
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz; 3 AF stage(s)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Line plus power jack, mostly with battery or storage battery / 120; 200; 240 / C: 4 x 1.5 / 6 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Power out
  • 1.8 W (max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Portable Radio Cassette Recorder with Mike Mixing M-2412F - Sanyo Electric Co. Ltd.;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 308 x 188 x 100 mm / 12.1 x 7.4 x 3.9 inch
  • Net weight (2.2 lb = 1 kg)
  • 5 lb 12 oz (5.75 lb) / 2.611 kg
  • Mentioned in
  • -- Original prospect or advert
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
