• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1962 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 159880

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 0

• Valves / Tubes
• unknown_Tube

• Number of Transistors
• 6

• Semiconductors
• 2SA101 2SA101 2SA101 2SB187 2SB187

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

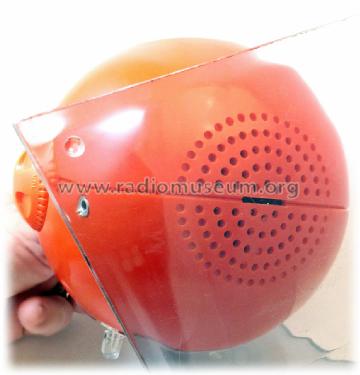

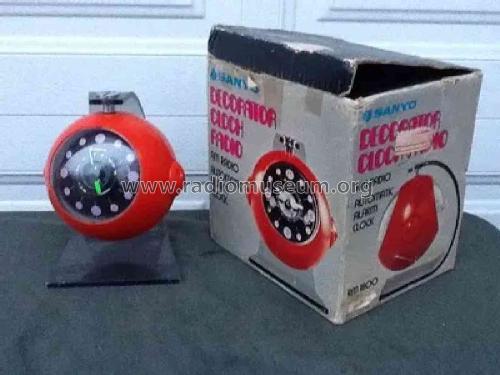

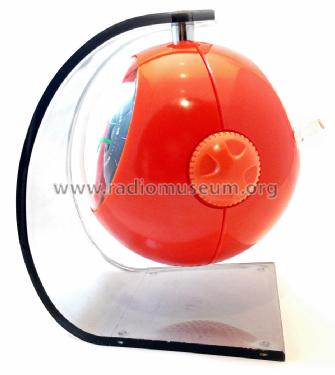

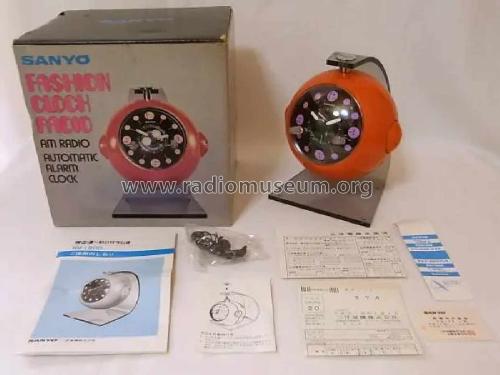

• Model: RM1800 - Sanyo Electric Co. Ltd.;

• Notes
• Clock with 1,5V batterie.

• Source of data
• -- Schematic

• Author
• Model page created by Antonio Martins-Pais. See "Data change" for further contributors.
