- Country
- Japan
- Manufacturer / Brand
- Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
- Year
- 1973–1976
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 122941

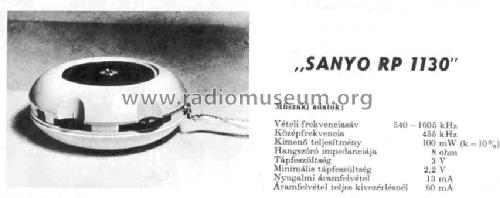

Rádiótechnika 1976.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Semiconductors
- 2SC9011 or. BF184 2SC9011 or. BF184 2SC9011 or. BF184 2SC9014 or. BC109 2SC9013 or. BC109 2SC9013 or. BC109 CDG24 or. BAY44 CDG24 or. BAY44
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 2× 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 0.3 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: RP-1130 - Sanyo Electric Co. Ltd.;
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 110 x 110 x 44 mm / 4.3 x 4.3 x 1.7 inch
- Net weight (2.2 lb = 1 kg)
- 0.2 kg / 0 lb 7 oz (0.441 lb)
- Literature/Schematics (1)
- Radio es Televizio Vevö keszülekek 1972-75
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
