Stereocast AC-DC 2 Way Power RP 8110

Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

Data
Forum
Pictures
Collections

  • Year
  • 1975 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 214077

 Technical Specifications

  • Number of Transistors
  • 10
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Line / Batteries (any type) / 220 / C: 4 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Stereocast AC-DC 2 Way Power RP 8110 - Sanyo Electric Co. Ltd.;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 240 x 155 x 64 mm / 9.4 x 6.1 x 2.5 inch
  • Notes

  • Sanyo 4-Band Portable Radio Model RP 8110

    FM: 87.5 - 108 MHz
    SW: 5.9 - 22.0 MHz
    MW: 510 - 1.605 kHz
    LW: 150 - 350 kHz

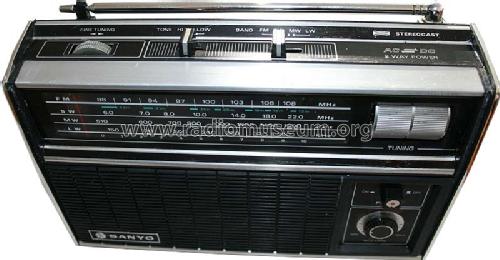

    Front: dial and knurled horizontal cylinder for tuning, power on/off switch, volume knob top: band selector, two-position tone selector, wheel for fine tuning in short waves, all external telescopic antenna, 6 sections, 90 cm. Right side: double socket for stereo output, earphone socket; rear side: DIN socket for tape recorder, socket for power supply, access to battery compartment.

    FTZ No. 104/255.

    Rigid handle, which rotates completely

    Measures with protrusions and weighing without batteries

  • Net weight (2.2 lb = 1 kg)
  • 1.150 kg / 2 lb 8.5 oz (2.533 lb)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
