• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1965 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 198099

• Number of Transistors
• 8

• Semiconductors
• 2SA201 2SA202 2SA203 2SB186 2SB187 2SB187 TG48 TG48

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch

• Power out
• 0.3 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

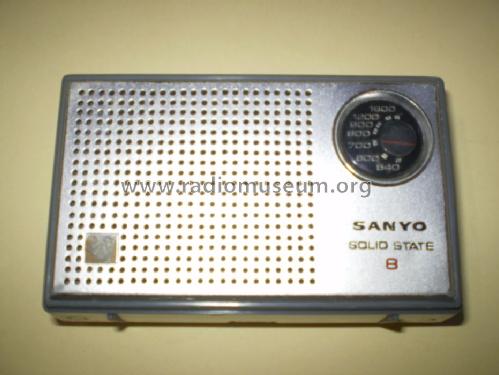

• Model: Solid state 8 Transistor Super Het [9 volts] - Sanyo Electric Co. Ltd.;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 120 x 75 x 35 mm / 4.7 x 3 x 1.4 inch

• Notes

• See also 3 (2 x 1,5) volts model

• Source of data
• - - Data from my own collection

• Author
• Model page created by Carlo Cossa. See "Data change" for further contributors.
