Solid State 852 Transcontinental 11XA-852

Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

Data
Forum
Pictures
Collections

  • Year
  • 1968 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 257485

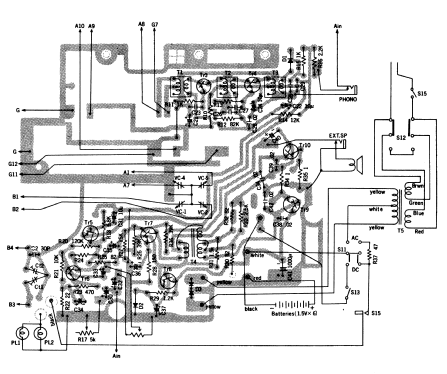

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 10
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast plus more than 2 Short Wave bands.
  • Power type and voltage
  • Line / Batteries (any type) / 100-120; 200-250 / D: 6 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 1.8 W (3 W max.)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: Solid State 852 Transcontinental 11XA-852 - Sanyo Electric Co. Ltd.;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 13 x 9 x 4.12 inch / 330 x 229 x 105 mm
  • Notes

  • Frequency Range

    MW: 520 - 1605 kHz
    SW1: 2.3 - 5.1 MHz
    SW2: 5.95 - 12.0 MHz
    SW3: 15.1 - 17.9 MHz
    SW4: 21 - 26.1 MHz

    Phono and Ext. Speaker jacks, Fine Tuning, Oval 4" x 6" 4 Ω speaker.



  • Net weight (2.2 lb = 1 kg)
  • 2.6 kg / 5 lb 11.6 oz (5.727 lb)
  • Source of data
  • -- Schematic
  • Author
  • Model page created by Daniel Rosha. See "Data change" for further contributors.
