• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1970 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 352432

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• 2SC668 2SC772 2SA101 2SC545 2SC545 2SC545 2SB171 2SB171 or. 2SB185 2SB187 2SB187 1S188

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz; 3 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Batteries / addl. power jack / AA: 4 X 1.5 / 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.35 W (0.5 W max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Solid State FM/AM Portable Radio 10F-821N - Sanyo Electric Co. Ltd.;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 7.125 x 4.4 x 2.125 inch / 181 x 112 x 54 mm

• Notes

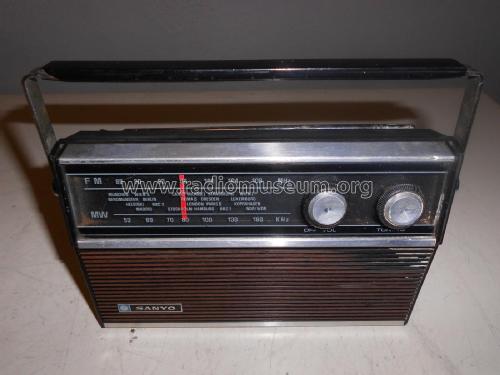

• Sanyo Solid State FM/AM Portable Radio 10F-821N, black dial with MW station names.

  Bands stated in manual/type plate:

  • AM: 510/515 - 1605/1620 kHz
  • FM: 87.5/88 - 108 MHz

  Elliptical loudspeaker: 4" x 2.5"

  See also Sanyo Cantino 10F-821N with white dial.

• Net weight (2.2 lb = 1 kg)
• 1 lb 7 oz (1.438 lb) / 0.653 kg

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
