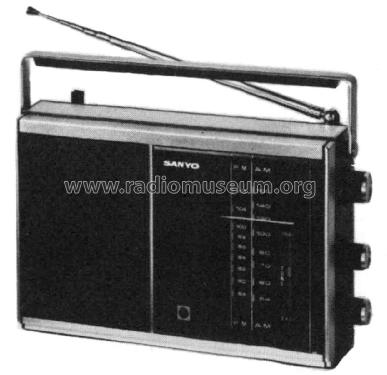

Solid State FM/AM Portable Radio with IC 10F-812

Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

Data
Forum
Pictures
Collections

  • Year
  • 1970 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 352431

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 8
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz; 3 AF stage(s)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Batteries / addl. power jack / AA: 4 X 1.5 / 6 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Power out
  • 0.32 W (0.5 W max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Solid State FM/AM Portable Radio with IC 10F-812 - Sanyo Electric Co. Ltd.;
  • Dimensions (WHD)
  • 7.5 x 5 x 2.125 inch / 191 x 127 x 54 mm
  • Notes

  • Bands:

    • AM: 540 - 1600 kHz
    • FM: 88 - 108 MHz
  • Net weight (2.2 lb = 1 kg)
  • 1.7 lb (1 lb 11.2 oz) / 0.772 kg
  • Literature/Schematics (2)
  • -- Original-techn. papers.
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
