Solid State Stereo Music Center G-2615H
Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
- Country
- Japan
- Manufacturer / Brand
- Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
- Year
- 1972
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 212361
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Details
- Cassette-Recorder or -Player; Radio with other functions
- Power type and voltage
- Line / Batteries (any type) / 110; 220; 240 / D: 6 × 1,5 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Solid State Stereo Music Center G-2615H - Sanyo Electric Co. Ltd.;
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 460 x 140 x 340 mm / 18.1 x 5.5 x 13.4 inch
- Notes

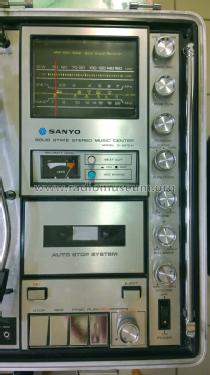

- Sanyo Portable 3 Band Solid State Stereo Music Center Model G-2615H.
3 band radio (MW/SW1/SW2 Solid State Receiver), Cassette Recorder (Auto stop system), 3-speed turntable (33, 45, 78 rpm) and two speakers (detachable) packed in a brief case.
- Net weight (2.2 lb = 1 kg)
- 7.5 kg / 16 lb 8.3 oz (16.52 lb)
- Source of data
- -- Original-techn. papers.
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
