• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1972 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 352901

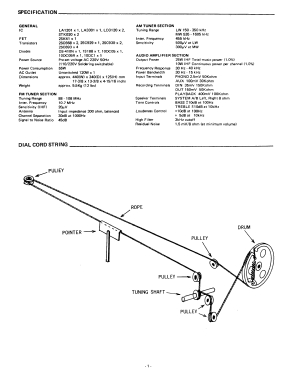

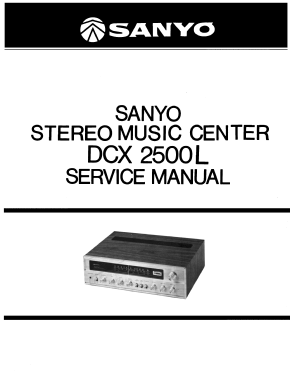

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• 2SK41 2SC668 2SC929 2SC693 2SC930 LA1201 LA3301 LD3120 STK020 DS410_Diode 1S188 SZ9 10DC-1

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 50/60 Hz, 120; 200; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 20 W (25 W max.)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Solid State Stereo Tuner Amplifier DCX-2500L - Sanyo Electric Co. Ltd.;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 440 x 125 x 340 mm / 17.3 x 4.9 x 13.4 inch

• Notes

• Sanyo Solid State Stereo Tuner Amplifier DCX-2500L

  Each semiconductor type listed once

• Net weight (2.2 lb = 1 kg)
• 5.5 kg / 12 lb 1.8 oz (12.115 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.

• Other Models

• Here you find 1756 models, 1584 with images and 472 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
