- Country
- Japan
- Manufacturer / Brand
- Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
- Year
- 1953 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 355246
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 85; 100; 110 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 2.5 W (unknown quality)
- from Radiomuseum.org

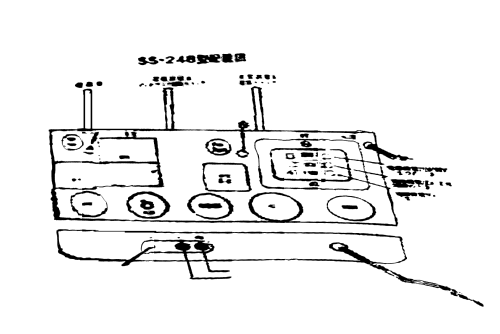

- Model: SS-248 - Sanyo Electric Co. Ltd.;
- Notes
-
Sanyo SS-248 is a 5-tube AC operated MW band superheterodyne receiver.
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Adrian Riesen. See "Data change" for further contributors.
