- Country
- Japan
- Manufacturer / Brand
- Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
- Year
- 1954 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 355254

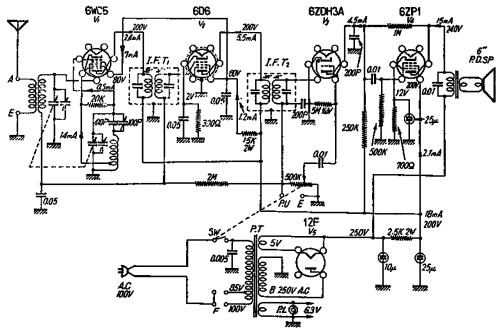

Bild aus dem Schaltplan mit Bild
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 85, 100 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
- Power out
- 2.5 W (unknown quality)
- from Radiomuseum.org
- Model: SS-55 - Sanyo Electric Co. Ltd.;
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Sanyo SS-55 is a 5-tube AC operated MW band superheterodyne receiver.
- Price in first year of sale
- 10,500.00 Yen
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Adrian Riesen. See "Data change" for further contributors.
