• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1972 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 334156

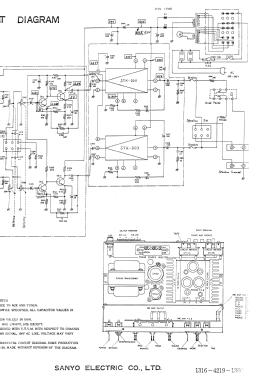

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• 2SC693 STK003 1S558

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 100; 110; 120; 200; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 20 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereo Amplifier DC-A80 - Sanyo Electric Co. Ltd.;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 284 x 105 x 250 mm / 11.2 x 4.1 x 9.8 inch

• Notes

• The Sanyo stereophonic amplifier DC-A80 contains beside 10 transistors two hybrid circuits (face plate states IC) STK003. These act as the power output amplifiers.

  Each solid state device is listed once only.


• Net weight (2.2 lb = 1 kg)
• 5.4 kg / 11 lb 14.3 oz (11.894 lb)
