• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1972 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 352776

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 36

• Semiconductors
• 2SC693 2SA733 2SC875 2SC1175 2SA532 2SD323 2SA649 2SA659 2SD325 DS130 DS430 RD24E HI5B2

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 50/60 Hz, 120; 200; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 90 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereo Amplifier DCA-1200 - Sanyo Electric Co. Ltd.;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 420 x 130 x 330 mm / 16.5 x 5.1 x 13 inch

• Notes

• Sanyo Model DCA-1200

  Input: Sensitiviy/impedance

  • Phono, 1, 2: 2.5 mV/50 kΩ
  • Tuner         : 130 mV/60 kΩ
  • Aux            : 130 mV/60 kΩ
  • Tape, 1, 2   : 130 mV/60 kΩ (RCA/DIN)
  • Aux 2/Mic   : 3.2 mV/50 kΩ

  Each semiconductor type listed once

• Net weight (2.2 lb = 1 kg)
• 9.8 kg / 21 lb 9.4 oz (21.586 lb)

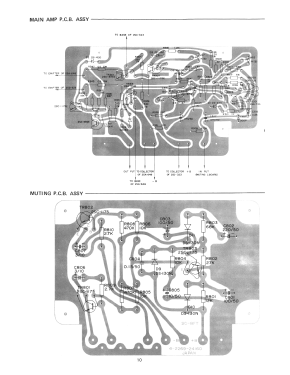

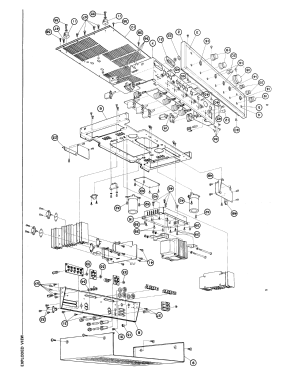

• Literature/Schematics (1)
• -- Original-techn. papers.
