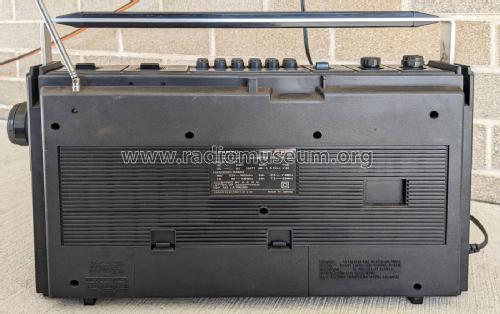

Stereo Cassette Recorder M-4100K 240 volt, 50 Hz version

Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

Data
Forum
Pictures
Collections

  • Year
  • 1979–1981
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 349893

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, 2 Short Wave plus FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 50 Hz, 240 / D: 6 x 1.5 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Stereo Cassette Recorder M-4100K [240 volt, 50 Hz version] - Sanyo Electric Co. Ltd.;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes

  • Stereo radio cassette, MW/SW1/SW2/FM/MPX, 2.5W per channel, LED indicators, variable monitor, sleep timer, tone, balance.

    Frequency Range:
    MW 525~1605 kHz
    SW1 2.3~7.3 MHz
    SW2 7.3~23 MHz
    FM 88~108 MHz

    The mains lead supplied for this model is fitted with a Type I Australian/New Zealand standard power plug.

    SECV (State Electricity Commission, Victoria) Letter of Acceptance Ref. No. LA79020.

    See also models M-4100K (with multiple line voltage settings) and M-4100LU (with LW).

  • Price in first year of sale
  • 166.00 AUS $
  • Author
  • Model page created by Martin Kent. See "Data change" for further contributors.
