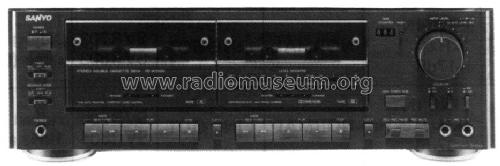

Stereo Double Cassette Deck RD W8500

Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

Data
Forum
Pictures
Collections

  • Year
  • 1989
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 239360

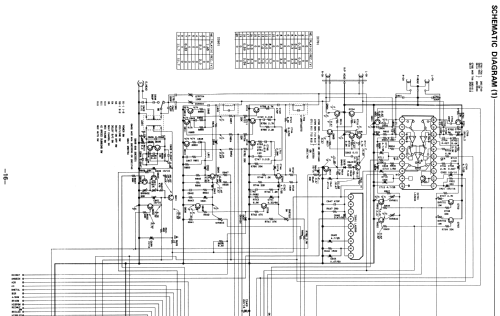

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Stereo Double Cassette Deck RD W8500 - Sanyo Electric Co. Ltd.;
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 420 x 360 x 135 mm / 16.5 x 14.2 x 5.3 inch
  • Mentioned in
  • -- Original-techn. papers.
  • Author
  • Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
