• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1966 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 200711

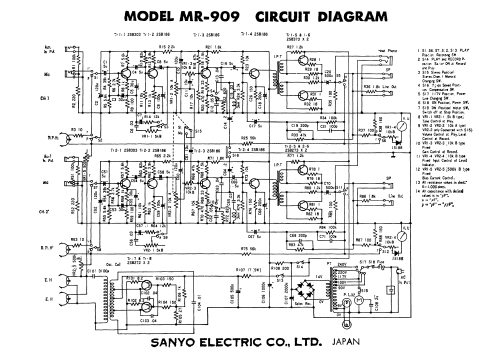

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 14

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 90; 100; 117; 220; 240 Volt

• Loudspeaker

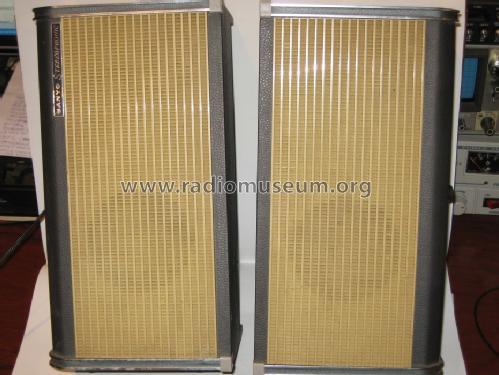

• - This model requires external speaker(s). / Ø 9.5 cm = 3.7 inch

• Power out
• 35 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Stereo MR-909 - Sanyo Electric Co. Ltd.;

• Shape

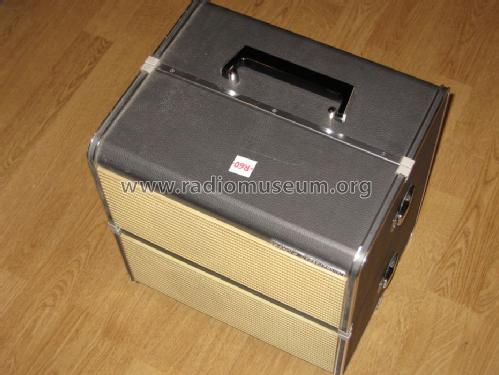

• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 350 x 260 x 330 mm / 13.8 x 10.2 x 13 inch

• Notes

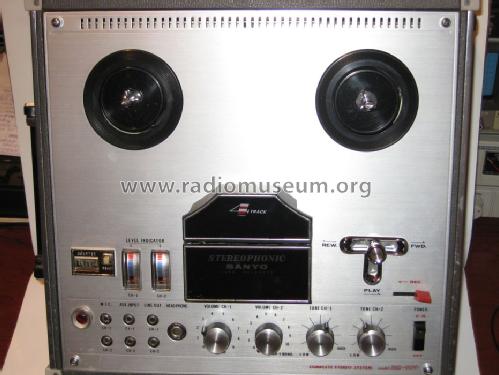

• 4 track stereo, velocidad: 7 1/2 ips, dos altavoces imán permanente externos en tapa, 2 level indicator.

• Net weight (2.2 lb = 1 kg)
• 15.5 kg / 34 lb 2.3 oz (34.141 lb)

• Author
• Model page created by Jose Mayoral-Diaz. See "Data change" for further contributors.
