• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1980 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 185860

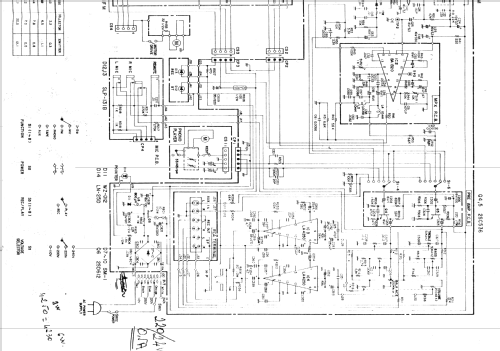

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 110; 200; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 8 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Stereo Music System GTX-1002NK - Sanyo Electric Co. Ltd.;

• Dimensions (WHD)
• 525 x 174 x 386 mm / 20.7 x 6.9 x 15.2 inch

• Notes
• And Torntable speed 33 1/3, 45 RPM. Speaker model: SX-1002NK.

• Source of data
• - - Data from my own collection

• Author
• Model page created by Nick Mellos. See "Data change" for further contributors.
