Stereo Radio Cassette Recorder M7024F

Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

Data
Forum
Pictures
Collections

  • Year
  • 1995 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 234127

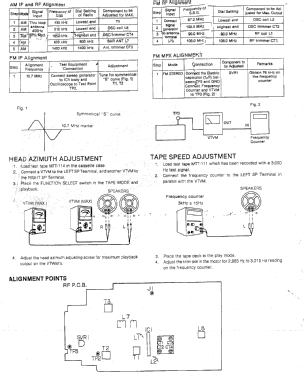

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 1
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 240/ 6 x 1,5 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Power out
  • 2.2 W (max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Stereo Radio Cassette Recorder M7024F - Sanyo Electric Co. Ltd.;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 418 x 182 x 95 mm / 16.5 x 7.2 x 3.7 inch
  • Notes

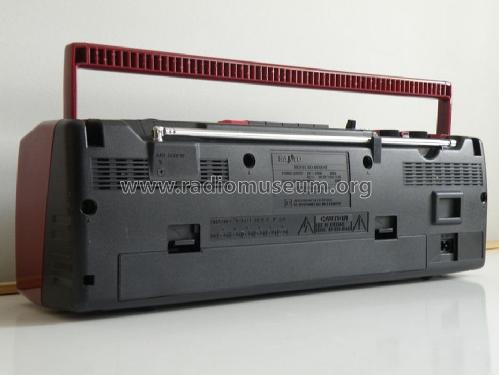

  • Sanyo AM-FM Stereo Radio Cassette Recorder Portable Model M7024F.
    2 Way 4 Speaker System.
    One touch Recording, Auto Stop.
    Power Consumption 12 Watts.
    Design: Boombox in Maroon Red & Black.
    Made in China.

  • Net weight (2.2 lb = 1 kg)
  • 1.9 kg / 4 lb 3 oz (4.185 lb)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
