• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1974–1977 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 342275

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 20

• Semiconductors
• 2SK41 2SC668 2SC930 2SC536 2SC929 2SC693 or. 2SC1312 2SD325 LA1201 LA3300 STK016 1S188 DS442 RD24E 10DC-1 WZ100

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 50/60 Hz, 120; 200; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 26 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Stereo Receiver DCX-2000K - Sanyo Electric Co. Ltd.;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 455 x 148 x 340 mm / 17.9 x 5.8 x 13.4 inch

• Notes

• AM/FM stereo receiver amplifier.

  Each semiconductor type listed once

  See also DCX-2000L with LW.



• Net weight (2.2 lb = 1 kg)
• 8.8 kg / 19 lb 6.1 oz (19.383 lb)

• Price in first year of sale
• 219.00 AUS $

• Mentioned in
• Mingay's Price Service (Aug 1976 to Aug 1977.)

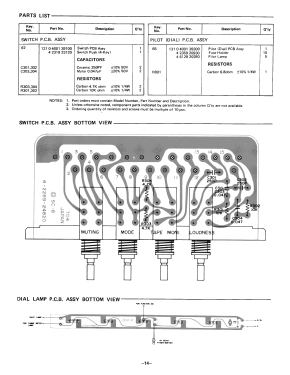

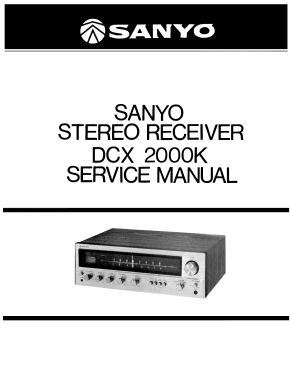

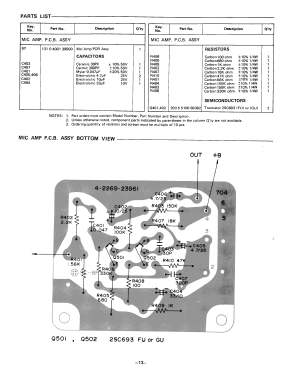

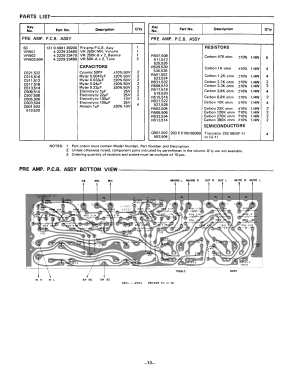

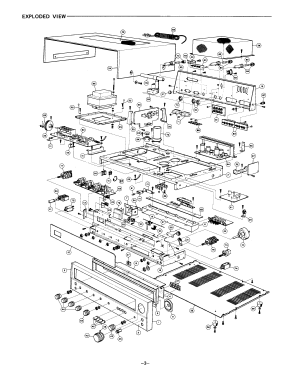

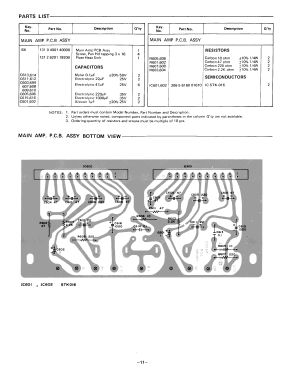

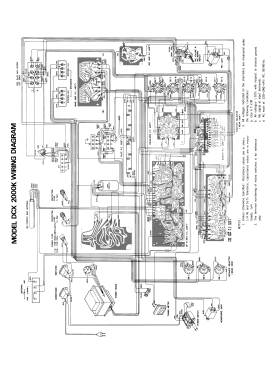

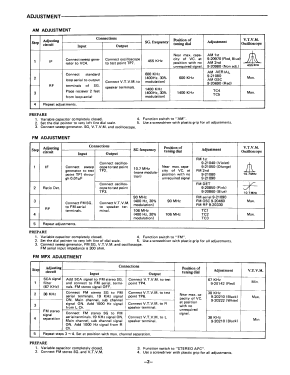

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Martin Kent. See "Data change" for further contributors.
