Stereo Receiver DCX-6000K

• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1973 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 252441

• Picture
• Schematics

Previous Next

Previous Next

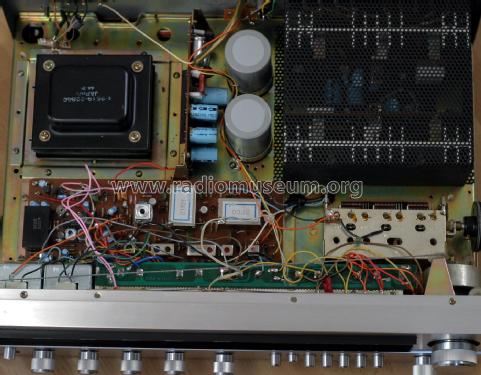

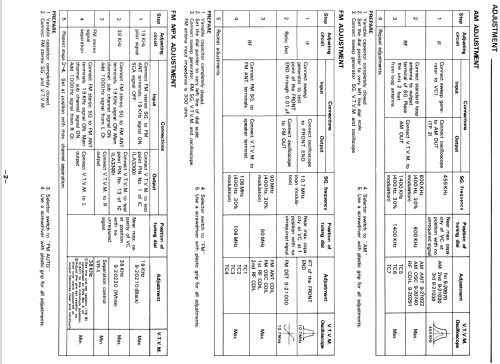

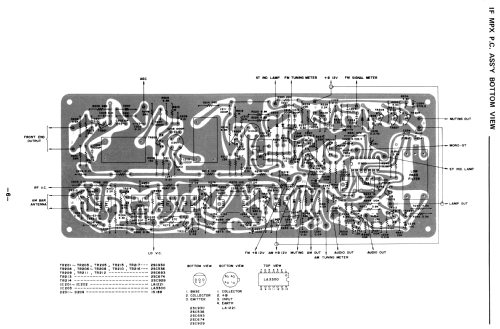

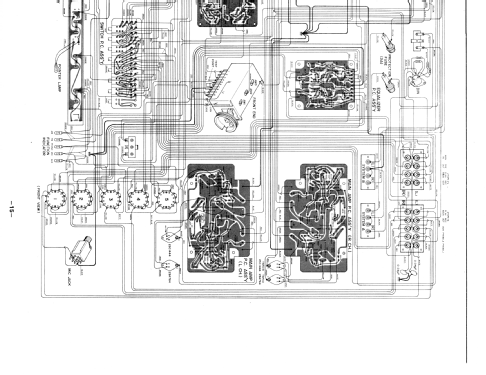

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 58

• Semiconductors
• 3SK30 2SC693 2SA726 2SA764 2SC536 2SC1313 2SB511 2SC674 2SA733 2SD325 2SC929 2SC875 2SC1175 2SA659 SE3001 2SA532 2SC1444 2SC535 2SC930 LA1221 LA3300 1S188 RD13EB3 RD24E DS430 S3RC40 S3RC40R

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 50/60 Hz, 120; 200; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 60 W (85 W max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Stereo Receiver DCX-6000K - Sanyo Electric Co. Ltd.;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 455 x 148 x 340 mm / 17.9 x 5.8 x 13.4 inch

• Notes

• On page p1 (data_cord) appears "2SC1175 x 6" but the device has only five 2SC1175

• Net weight (2.2 lb = 1 kg)
• 11.5 kg / 25 lb 5.3 oz (25.33 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Andreas Schulz. See "Data change" for further contributors.

• Other Models

• Here you find 1756 models, 1584 with images and 472 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
