Stereocast 2 way Power RP8100
Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
- Country
- Japan
- Manufacturer / Brand
- Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
- Year
- 1975 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 276248
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, 2 Short Wave plus FM or UHF.
- Power type and voltage
- Line / Batteries (any type) / 120; 240 / C: 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Stereocast 2 way Power RP8100 - Sanyo Electric Co. Ltd.;
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 230 x 150 x 60 mm / 9.1 x 5.9 x 2.4 inch
- Notes
-

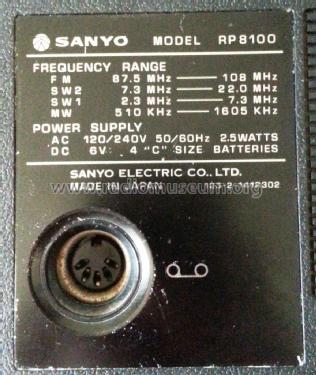

Frequency Range
FM: 87.5 - 108 MHz
SW2: 7.3 - 22 MHz
SW1: 2.3 - 7.3 MHz
AM: 510 - 1605 kHz
- Author
- Model page created by Daniel Rosha. See "Data change" for further contributors.
