- Country
- Japan
- Manufacturer / Brand
- Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
- Year
- 1976 ??
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 319266
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- 2 Loudspeakers
- Power out
- 20 W (max.)
- Material
- Wooden case
- from Radiomuseum.org

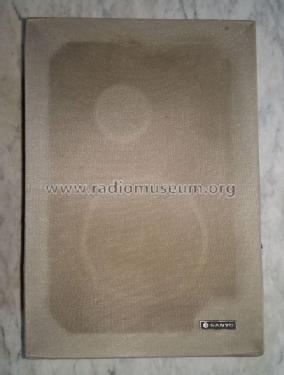

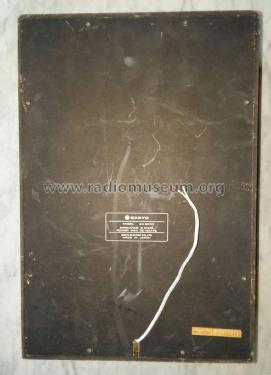

- Model: SX-807C - Sanyo Electric Co. Ltd.;
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 440 x 300 x 205 mm / 17.3 x 11.8 x 8.1 inch
- Notes
-

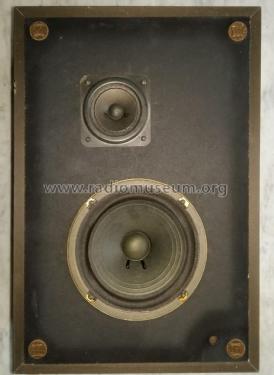

Music box with a 167 mm diameter woofer and a 65 mm tweeter. Impedance 8 Ω and power max. 20 W declared on each speaker. Frequency response of tweeter; 3 ÷ 12 kHz.
Woofer Sanyo model 4-1519-270000. Tweeter Sanyo model 4-27101.
Made in Japan.
- Net weight (2.2 lb = 1 kg)
- 3.7 kg / 8 lb 2.4 oz (8.15 lb)
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
