- Country
- Spain
- Manufacturer / Brand
- Sanyo España, Eurotrón, Ainsa; Huesca (HU) y Tudela (NA)
- Year
- 1978
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 319681
Imagen del manual

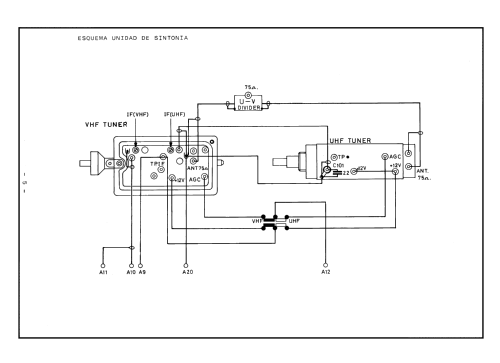

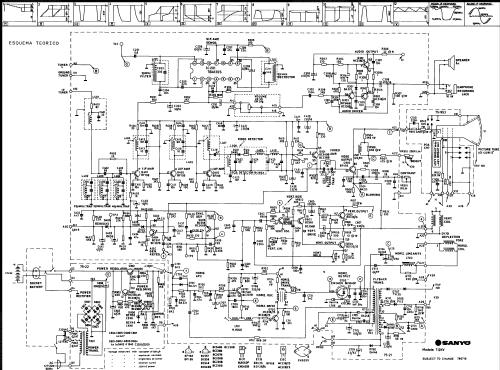

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- A31-410W
- Number of Transistors
- 23
- Semiconductors
- TBA120
- Main principle
- Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Line / Storage batteries (perhaps also batteries) / 125; 220 / 12 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
- Power out
- 1.4 W (undistorted)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: T-12KV - Sanyo España, Eurotrón, Ainsa;
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 388 x 263 x 283 mm / 15.3 x 10.4 x 11.1 inch
- Notes
-
Sanyo España, S.A. T-12KV
TV B/N 12" con sintonizadores para VHF/UHF.
- Net weight (2.2 lb = 1 kg)
- 7.5 kg / 16 lb 8.3 oz (16.52 lb)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
