- Country
- Spain
- Manufacturer / Brand
- Sanyo España, Eurotrón, Ainsa; Huesca (HU) y Tudela (NA)
- Year
- 1975 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 320250
Folleto original

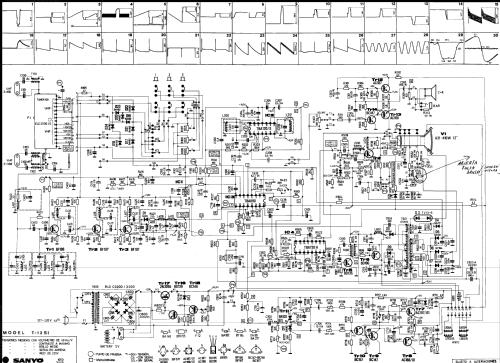

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- A31-410W
- Number of Transistors
- 16
- Main principle
- Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Line / Storage batteries (perhaps also batteries) / 127; 220 /12 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: T-12SI - Sanyo España, Eurotrón, Ainsa;
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 390 x 305 x 270 mm / 15.4 x 12 x 10.6 inch
- Notes
-
Sanyo España, S.A., T-12SI
TV B/N 12" con Sintonizador VHF/UHF a varicaps Copresa ELC-2000-S
- Altavoz elíptico de 80 x 130 mm.
- Base giratoria 360º
- Tres canales memorizados seleccionables por pulsador.
- Net weight (2.2 lb = 1 kg)
- 9 kg / 19 lb 13.2 oz (19.824 lb)
- Mentioned in
- -- Original prospect or advert
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
