- Country
- Japan
- Manufacturer / Brand
- Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
- Year
- 1978 ??
- Category
- Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
- Radiomuseum.org ID
- 194392
- Number of Tubes
- 1
- Valves / Tubes

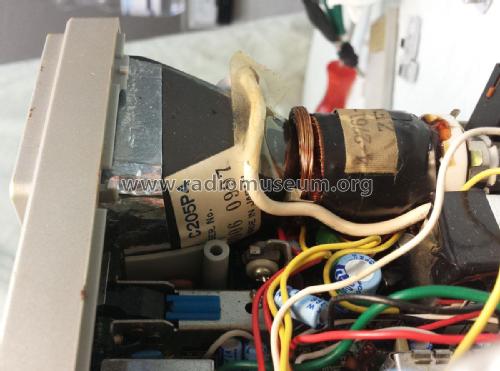

- C205P4
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Line / Storage batteries (perhaps also batteries) / 117 / 220 / 5 x 1.5 / 12 / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: TPM2070 - Sanyo Electric Co. Ltd.;
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 13 x 5 x 15 inch / 330 x 127 x 381 mm
- Notes
- Tha Sanyo model TPM2070 is a very small TV- and radio receiver with the bands broadcast (AM), FM (88 - 108 MHz), VHF and UHF. Both, VHF and UHF for the USA and Europe. It operates on rechargeable batteries NTP-550B, car battery cord (MDC-53B) and with an AC adaptor type 4-1911-05942 or on 5 dry cells SUM-3 or on DC 9 volts 2.5 watts.
This little guy only has one antenna that does it all (TV FM and AM). It has a hole for an external antenna, looks just like the plug for the earpiece .When the battery box is opened one can see slots for x5 AA batteries. Whats odd though, is that it has an adapter in this same compartment to "recharge" the AA batteries ... The TV screen measuring horiz, or side to side 5 cm (2/1/8"). Top to bottom just shy of 4 cm (1-3/4"). Measuring diagnal from lower left corner to the upper right corner is 6 cm (2-3/4"). Antenna 56 cm (22") long.
- External source of data
- Guest Lloyd LaBombard
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
