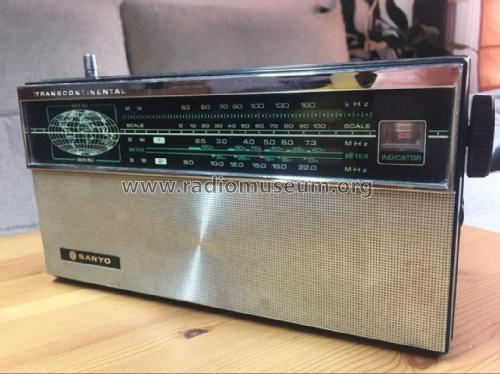

Transcontinental RP-3118

Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

Data
Forum
Pictures
Collections

  • Year
  • 1974 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 340470

 Technical Specifications

  • Number of Transistors
  • 8
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast plus 2 Short Wave bands.
  • Power type and voltage
  • Batteries / addl. power jack / D: 4 x 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
  • Power out
  • 0.5 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Transcontinental RP-3118 - Sanyo Electric Co. Ltd.;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 9.25 x 5 x 2.5 inch / 235 x 127 x 64 mm
  • Notes

  • 8-transistor, 3 bands, battery-powered portable radio.

    Features
    Tuning indicator meter
    Telescopic antenna
    Earphone Jack

    Frequency Range


    MW: 530 - 1605 kHz
    SW1: 2.3 - 7.3 MHz
    SW2: 8.0 - 22.0 MHz



  • Net weight (2.2 lb = 1 kg)
  • 2 lb 6 oz (2.375 lb) / 1.078 kg
  • Price in first year of sale
  • 8,200.00 yen
  • Mentioned in
  • - - Manufacturers Literature (1974-75 Sanyo products catalog, page 23)
