Transworld 13GA-B77
Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
- Country
- Japan
- Manufacturer / Brand
- Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
- Year
- 1972 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 346112

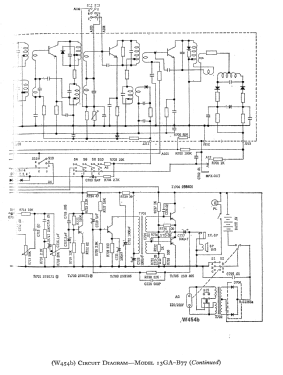

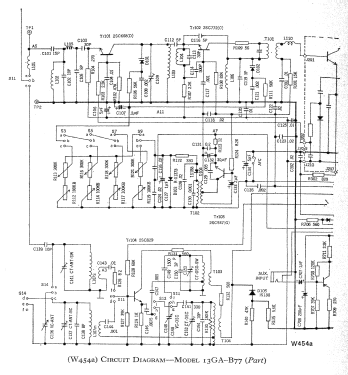

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 13
- Semiconductors
- 2SC668 2SC772 2SC772 2SC772 2SC772 2SC537 2SC537 2SC829 2SB171 2SB171 2SB186 2SB405 2SB405 1S188 MA26
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Power type and voltage
- Line / Batteries (any type) / 110-120; 200-240 / C: 4 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8.5 cm = 3.3 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Transworld 13GA-B77 - Sanyo Electric Co. Ltd.;
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 230 x 150 x 70 mm / 9.1 x 5.9 x 2.8 inch
- Notes
-
3 preset for FM Stations. Bands:
- MW 530 - 1605 kHz
- SW 3,2 - 12 MHz
- FM 87,5 - 108 MHz
A part of the diagram with the name not present in the main schematic of four semiconductors has been inserted separately.
13 Transistors, 7 Diodes (3 1S188 and 4 MA26) and 1 Varicap.
- Net weight (2.2 lb = 1 kg)
- 1.4 kg / 3 lb 1.3 oz (3.084 lb)
- Mentioned in
- -- Schematic (Schemario Radio Autoradio Mangianastri edizioni "Il Rostro" Italy, March 1971.)
- Author
- Model page created by Massimo Maceli. See "Data change" for further contributors.
