• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 2001 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 327639

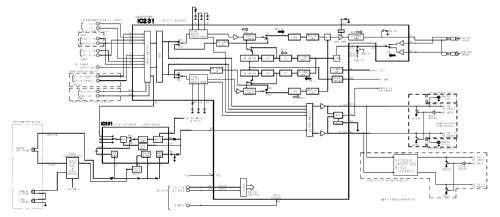

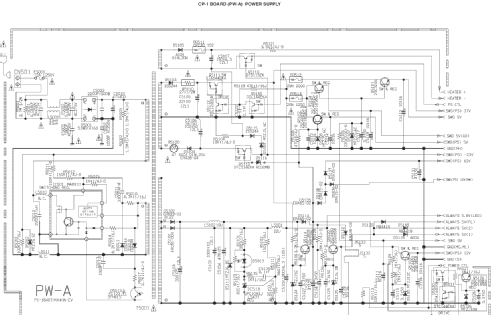

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Video-Taperecorder/-Player

• Power type and voltage
• Alternating Current supply (AC) / 220-240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Video Cassette Recorder VHR-H771 - Sanyo Electric Co. Ltd.;

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 350 x 250 x 100 mm / 13.8 x 9.8 x 3.9 inch

• Notes
• • Video Cassette Recorder
  • HI-FI Stereo
  • Compatible Canal +
  • Ecological low power Stand By
  • Two AVs

  Suffix:

  • EV for Europe (code 14318408)
  • SP for Spain (code 14318419) and Portugal (code 14318420)

  Made in Indonesia

• Net weight (2.2 lb = 1 kg)
• 4 kg / 8 lb 13 oz (8.811 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Julián Muñoz Lorenzo. See "Data change" for further contributors.
