• Country
• Soviet Union

• Manufacturer / Brand
• Sarapoul Orjonikidze Radio Works

• Year
• 1951–1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 79612

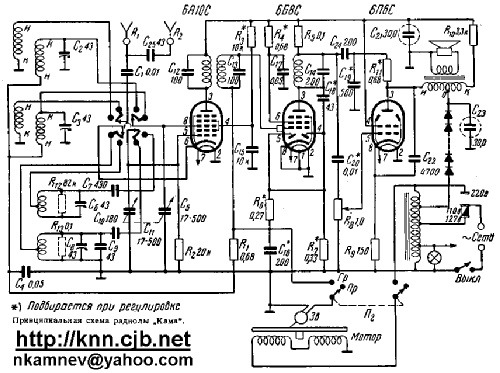

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 6А10С 6Б8С 6П6С

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 110, 127, 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Kama {Кама} Radiogramophone [3 tubes] - Sarapoul Orjonikidze Radio

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 390 x 255 x 285 mm / 15.4 x 10 x 11.2 inch

• Notes
• "Kama" it is chassis from radio "Moskvich B" plus record-player in one case.(see "Moskvich B"). There were three small schema modernize variants in the intervening period. After fourth schemat modernize variant, this model was producible with four tubes - see "Moskvich B", variant-"4tubes". One model name and same case design at all time. In time varied picture on scale glass.
  Elektromagnetic ton-arm and one 78 rpm speed phono.

• Net weight (2.2 lb = 1 kg)
• 9.5 kg / 20 lb 14.8 oz (20.925 lb)

• Mentioned in
• E.A.Levitin "Radio sets" Moscow 1960

• Author
• Model page created by Zenonas Langaitis. See "Data change" for further contributors.
