• Country
• Italy

• Manufacturer / Brand
• SARCA (S.A.R.C.A., SARKA); Milano

• Year
• 1959 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 243736

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 UL84 UY85

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220; 250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

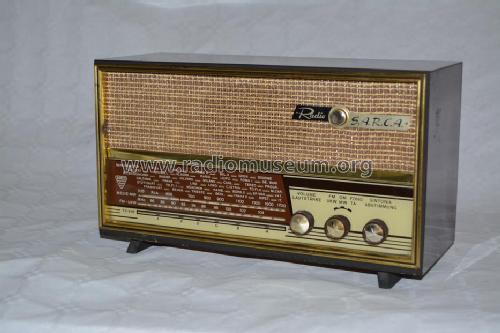

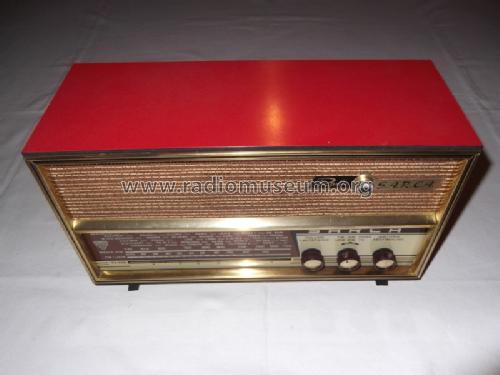

• Model: S123 Serie 963 - SARCA S.A.R.C.A., SARKA;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 335 x 195 x 135 mm / 13.2 x 7.7 x 5.3 inch

• Net weight (2.2 lb = 1 kg)
• 3.2 kg / 7 lb 0.8 oz (7.048 lb)

• Author
• Model page created by Sante Corazza. See "Data change" for further contributors.

• Other Models

• Here you find 42 models, 40 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from SARCA (S.A.R.C.A., SARKA); Milano
