• Country
• United States of America (USA)

• Manufacturer / Brand
• Sarkes Tarzian Enterprises, Bloomington, In

• Year
• 1961 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 177011

• Number of Tubes
• 5

• Valves / Tubes
• 19CL8A 19EA8 12BN6 35EH5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 10700 kHz; 1 AF stage(s)

• Tuned circuits
• 8 FM circuit(s)

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• AC/DC-set / 110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 1.4 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

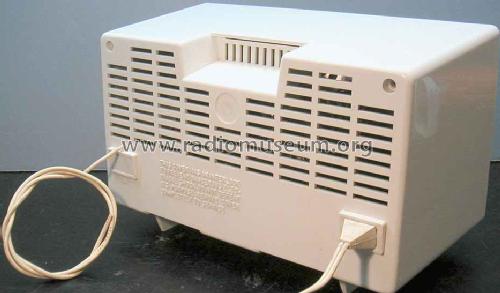

• Model: 723-530 - Sarkes Tarzian Enterprises,

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 250 x 155 x 135 mm / 9.8 x 6.1 x 5.3 inch

• Notes
• 3-fach UKW-Drehko; HF-Verstärker: Pentode !/2 19CL8A; Mischer: Triode 1/2 19CL19A; Bildet zusammen mit Triode 1/2 19EA8 eine Cascodestufe für die ZF; 2. ZF Stufe: Pentode 1/2 19EA8; Diskriminator 12BN6 "gated beam tube"; Schaltung wie UKW-Teil von Modell 723-509; Anordnung der Bauteile auf dem Chassis wie "Admiral Stanton Y3083 Chassis 5V5" (Schaltung dort leicht anders.) Wie 723-531, aber mit weissem Gehäuse.

• Net weight (2.2 lb = 1 kg)
• 1.670 kg / 3 lb 10.9 oz (3.678 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by a member from D. See "Data change" for further contributors.
