• Country
• Italy

• Manufacturer / Brand
• Savigliano, Officine di, SA; Savigliano (CN)

• Year
• 1933

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 177310

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes

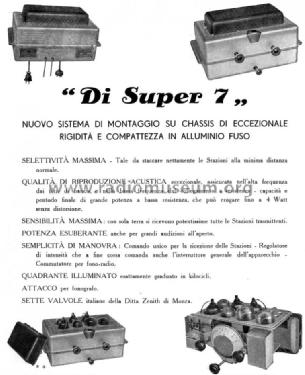

• D495 D495 S495 S495 S493 TP4100 R5200

• Main principle
• Superhet, double/triple conversion

• Tuned circuits
• 11 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

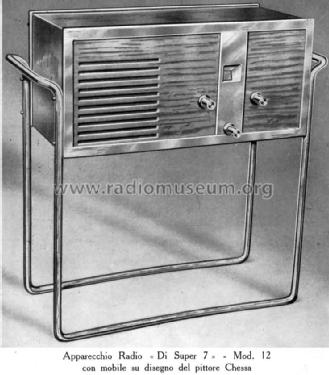

• Model: 12 - Savigliano, Officine di, SA;

• Shape
• Console with any shape - in general

• Notes

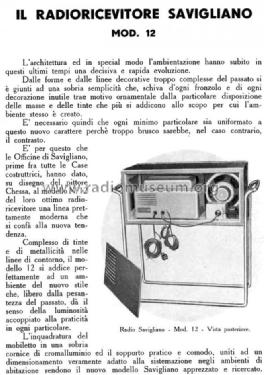

• Mobile su disegno del pittore Chessa. Supporto del mobiletto in cromalluminio.

• Source of data
• -- Original prospect or advert

• Mentioned in
• - - Manufacturers Literature

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
