• Country
• Italy

• Manufacturer / Brand
• Savigliano, Officine di, SA; Savigliano (CN)

• Year
• 1933/1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 177328

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• RENS1284 RENS1374d RGN1064

• Main principle
• TRF with regeneration

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

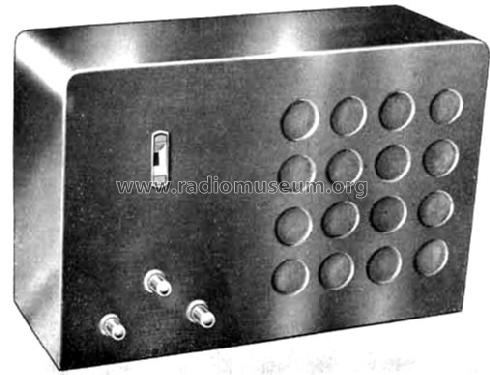

• Model: 62 - Savigliano, Officine di, SA;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 310 x 220 x 100 mm / 12.2 x 8.7 x 3.9 inch

• Notes
• 3 gamme d'onda. Indicatore di gamma a colori.

• Price in first year of sale
• 800.00 ITL

• Mentioned in
• -- Original prospect or advert (Rivista Savigliano, Settembre 1933)

• Literature/Schematics (1)

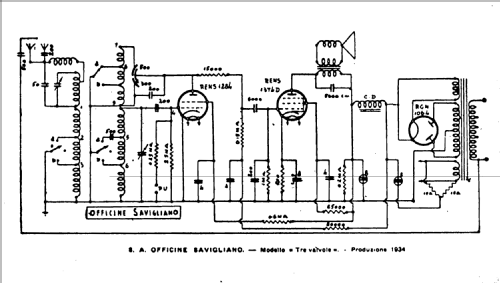

• -- Schematic

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
