• Country
• Italy

• Manufacturer / Brand
• Savigliano, Officine di, SA; Savigliano (CN)

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 99411

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A7 78 75 42 80

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 160: 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 99 - Savigliano, Officine di, SA;

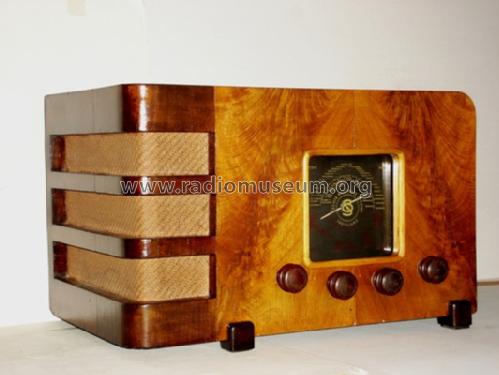

• Shape
• Tablemodel, low profile (big size).

• Notes

• Controllo di tono. Ingresso Fono.

• Price in first year of sale
• 1,150.00 ITL

• Source of data
• Guida Pratica Antique Radio II (2000)

• Literature/Schematics (1)
• -- Schematic

• Literature/Schematics (2)
• Schemario di apparecchi radio a valvole
