• Country
• Italy

• Manufacturer / Brand
• Savigliano, Officine di, SA; Savigliano (CN)

• Year
• 1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 100597

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH4 ECH4 6Q7 EL3 EM4 5Y3

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

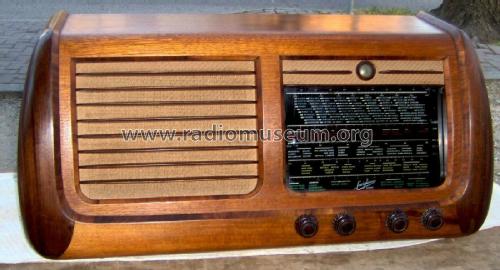

• Model: OS51 - Savigliano, Officine di, SA;

• Shape
• Tablemodel, low profile (big size).

• Notes

• Gamme d'onda: medie e 4 corte.
  Wave bands: BC, 4× SW.

  L'estensione di gamma totale è da 590 a circa 7 metri.
  Controllo di tono. Ingresso per giradischi.

• Source of data
• Guida Pratica Antique Radio (1) 1999

• Literature/Schematics (1)
• Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 286)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
