• Country
• Italy

• Manufacturer / Brand
• Savigliano, Officine di, SA; Savigliano (CN)

• Year
• 1933

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 177307

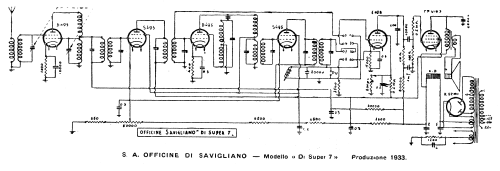

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• D495 D495 S495 S495 S493 TP4100 R5200

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 160; 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Spinetta 40 Ch= Di Super 7 - Savigliano, Officine di, SA;

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 570 x 790 x 910 mm / 22.4 x 31.1 x 35.8 inch

• Notes

• Mobile console in forma di una spinetta.

  Console radio with the shape of a spinet.

• Net weight (2.2 lb = 1 kg)
• 30 kg / 66 lb 1.3 oz (66.079 lb)

• Source of data
• -- Original prospect or advert

• Mentioned in
• Guida Pratica Antique Radio IV (2001)

• Literature/Schematics (1)
• Schemario di apparecchi radio a valvole (II edizione, D.E. Ravalico - Hoepli - 1945)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
