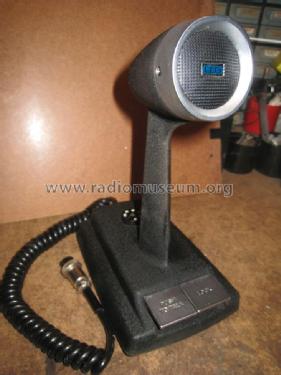

Amplified desk top microphone
SBE - see Linear Systems, Watsonville
- Country
- United States of America (USA)
- Manufacturer / Brand
- SBE - see Linear Systems, Watsonville
- Year
- 1970 ??
- Category
- Microphone or Pick-up element
- Radiomuseum.org ID
- 262568
- Number of Transistors
- 2
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Dry Batteries / 1 x 9 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Amplified desk top microphone - SBE - see Linear Systems,
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 100 x 205 x 135 mm / 3.9 x 8.1 x 5.3 inch
- Notes
-

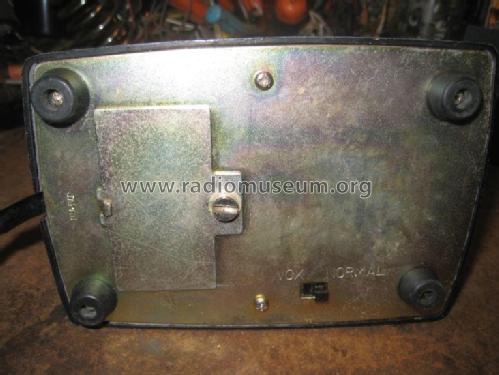

Opzione Normal - Vox
Banda cittadina 27 Mhz
30 db
Response: 1 - 10000 Hz

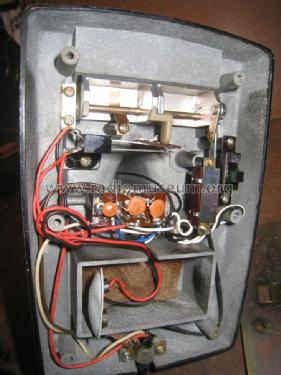

The electronic board contains two stages, each holding a 2SC644 low- noise transistor.
- Net weight (2.2 lb = 1 kg)
- 0.350 kg / 0 lb 12.3 oz (0.771 lb)
- Author
- Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
