• Country
• Belgium

• Manufacturer / Brand
• SBR Société Belge Radio-Electrique, Bruxelles

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 75683

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes

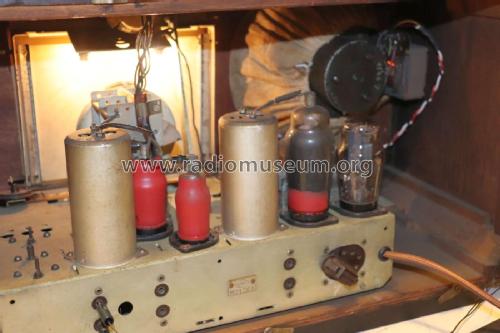

• ECH3 EF9 EBL1 AZ1 EM1

• Main principle
• Superheterodyne (common); ZF/IF 484 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 140; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 4.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

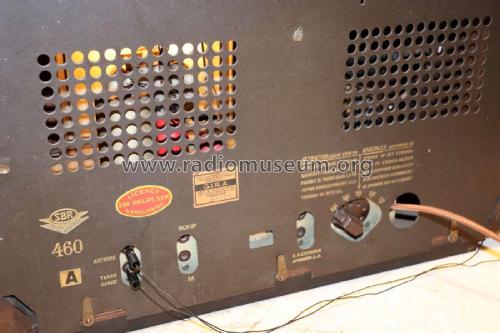

• Model: Super Ondolina 460A - SBR Société Belge Radio-

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 532 x 334 x 270 mm / 20.9 x 13.1 x 10.6 inch

• Price in first year of sale
• 1,995.00 BFr

• External source of data
• P.H. Brans

• Author
• Model page created by Hugo Sneyers. See "Data change" for further contributors.
