• Year
  • 1936 ?
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 218344

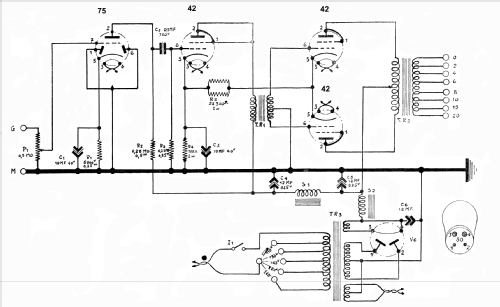

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 130; 145; 220; 240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 10 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Amplifier 101 - SBR Société Belge Radio-
  • Shape
  • Chassis only or for «building in»
  • Notes
  • 100 - 10.000 Hz. For 2, 4, 6, 8, 10, 15 or 20 ohm impedance. 65 W power consumption.
  • Source of data
  • -- Original prospect or advert
  • Author
  • Model page created by Hugo Sneyers. See "Data change" for further contributors.
