- Country
- Belgium
- Manufacturer / Brand
- SBR Société Belge Radio-Electrique, Bruxelles
- Year
- 1965 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 207326

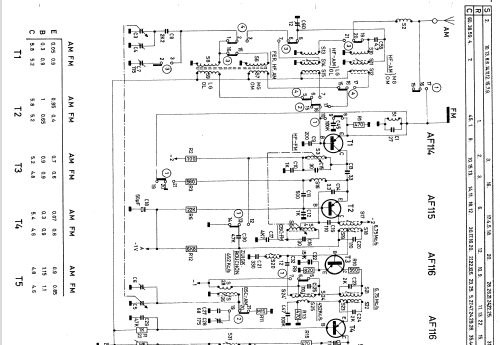

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 9
- Main principle
- ZF/IF 452/6750 kHz
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Storage and/or dry batteries / 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org
- Model: P29 - SBR Société Belge Radio-
- Shape
- Portable set > 8 inch (also usable without mains)
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Radiomuseum Olen Museum. See "Data change" for further contributors.
