• Country
• Belgium

• Manufacturer / Brand
• SBR Société Belge Radio-Electrique, Bruxelles

• Year
• 1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 98460

• Number of Tubes
• 6

• Valves / Tubes
• ECH41 6SG7 6SQ7 6V6GT 6E5 5Y3GT

• Main principle
• Superheterodyne (common); ZF/IF 484 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 4.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

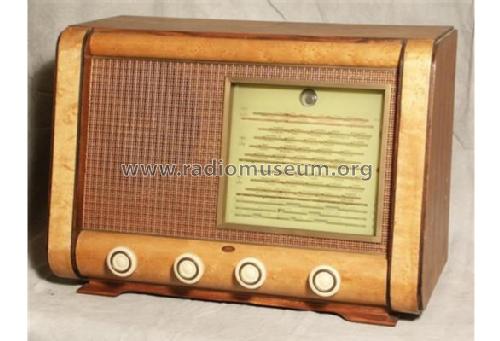

• Model: Pandora 861A - SBR Société Belge Radio-

• Shape
• Tablemodel, low profile (big size).

• Notes

• Existe aussi avec:
  ECH41 EF41 6SQ7 6V6 5Z4 EM34

• Price in first year of sale
• 380.00 Hfl

• Source of data
• Technisch- Commercieel - Radio Vademecum Staleman

• Author
• Model page created by John Koster. See "Data change" for further contributors.

• Other Models

• Here you find 718 models, 666 with images and 393 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from SBR Société Belge Radio-Electrique, Bruxelles
