- Country
- Belgium
- Manufacturer / Brand
- SBR Société Belge Radio-Electrique, Bruxelles
- Year
- 1958/1959 ?
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 127906

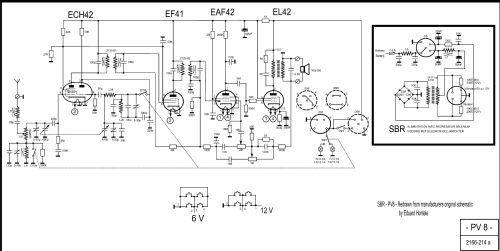

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Metal case
- from Radiomuseum.org
- Model: PV.8 - SBR Société Belge Radio-
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 195 x 180 x 54 mm / 7.7 x 7.1 x 2.1 inch
- Price in first year of sale
- 2,690.00 BEF
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Jean-Paul Moriamé. See "Data change" for further contributors.
